產品：冷卻液回收裝置
產品特性:

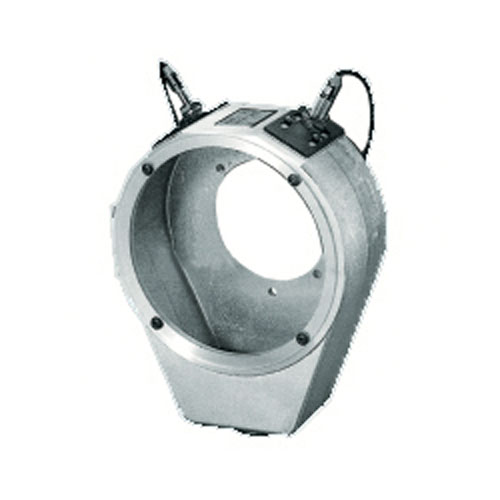

■冷卻液回收裝置（選購件） Coolant Collector (Additional Parts)
該裝置可與P25、P23系列通孔回轉油缸配套使用，安裝在油缸尾部，以收集切削液，并可附設行程開關，行程開關的位置應根據(jù)活塞后部行程開關碰頭位置及行程需要而適當調整。
This component is used with P25、P23 cylinder, fitted at the end of the cylinder to collect cutting-water. A stroke control device may be equipped and its location should be adjusted according to stroke and the dog placed at the end of the piston.
產品詳情

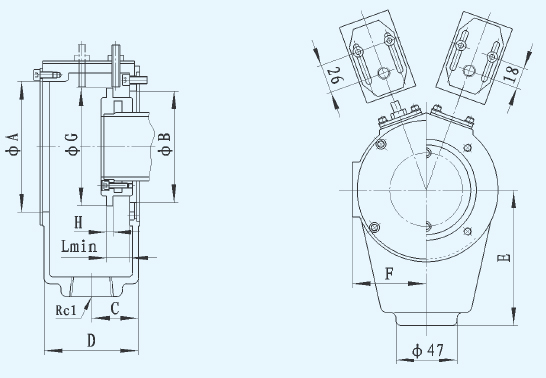

■尺寸、性能參數(shù) Dimension 、Characteristic Parameters
|
規(guī)格
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
Lmin
|
適合油缸
|
|
P23100-Ⅱ
|
100
|
75
|
41
|
80
|
115
|
63
|
90
|
5
|
23
|
P25105 P23100
|
|
P25125-Ⅱ P23125-Ⅱ
|
100
|
86
|
41
|
80
|
115
|
63
|
90
|
5
|
23
|
P25125 P23125
|
|
P25155-Ⅱ P23160-Ⅱ
|
114
|
96
|
41
|
80
|
130
|
71
|
99
|
5
|
23
|
P25155 P23160
|
|
P25180-Ⅱ P23200-Ⅱ
|
146
|
122
|
42.5
|
85
|
150
|
88
|
131
|
5
|
23
|
P25180 P23200
|
|
P25205-Ⅱ P23250-Ⅱ
|
158
|
140
|
44
|
88
|
155
|
97
|
147
|
6
|
22.5
|
P25205 P23250
|
產品備注
※油缸配帶冷卻液回收裝置時，產品型號后加Ⅱ，如：P23160×52-Ⅱ，P25155×52B變?yōu)镻25155×52B-Ⅱ。
※When the hydraulic cylinders matching the coolant device, add Ⅱ behind model , e.g. P23160×52 should be P23160×52-Ⅱ，P25155×52B should be P25155×52B-Ⅱ.
|
