產品：KB
產品特性:
■特點：
☆屬輕負荷卡盤，通過5C彈性?shī)A頭安裝于機床上。
☆安裝省時，定心精度高，夾持范圍廣。
☆產品分兩類：KB11型（三爪自定心）、KB72型（四爪單動）。
☆可提供不同需求的安裝結構尺寸。
■Specificity:
☆The chucks are available for light-duty processing,mounted on machine tools with 5C spring collet.
☆With short mounting time, high centring precision , and large clamping range.
☆There are two types such as KB11 (three-jaw self-centring chucks) and KB72(four jaw independent chucks).
☆The mounting structure dimensions can be provided as requested.
產品詳情

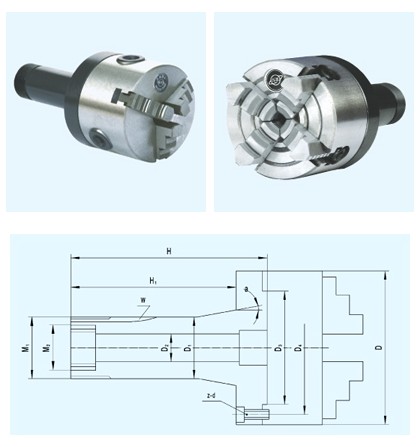

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
a
|
M1
|
M2
|
W
|
H
|
H1
|
z-d
|
凈重K
NET WT.
|
|
KB11 3″
|
80
|
31.737
|
19.45
|
55
|
66
|
10°
|
1.238″-20NS
|
1.042″-24NS
|
3.175
鍵槽寬
Key groove with
|
105
|
86.12
|
3-M6
|
2.9
|
|
KB11 4″
|
100
|
31.737
|
19.45
|
72
|
84
|
10°
|
1.238″-20NS
|
1.042″-24NS
|
105
|
86.12
|
3-M8
|
4.6
|
|
KB11 3″
|
80
|
31.737
|
19.45
|
55
|
66
|
10°
|
1.238″-20NS
|
1.042″-24NS
|
105
|
86.12
|
4-M6
|
2.5
|
|
KB11 3″
|
100
|
31.737
|
19.45
|
72
|
84
|
10°
|
1.238″-20NS
|
1.042″-24NS
|
105
|
86.12
|
4-M8
|
3.1
|
|
