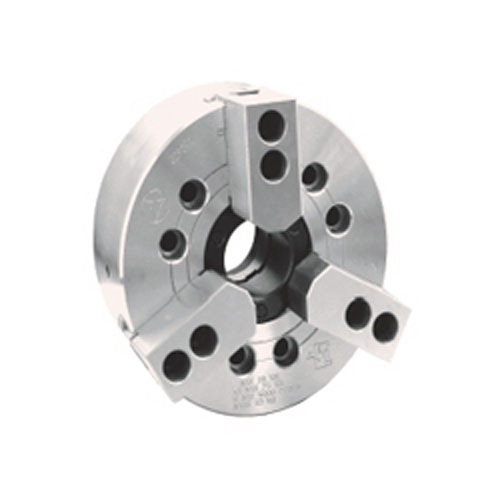

產品：KT55
產品特性:
■特點：
☆短圓柱連接形式。
☆符合日本標準。
☆大通孔，高轉速。
☆適合于盤類、棒類工件的加工。
☆配帶軟卡爪。
■Specificity:
☆Short cylindrical center connection.
☆Conform to Japanese standard.
☆Large through-hole ,high rotation speed.
☆The chucks are especially suitable for precision machining.
☆Matched with the soft jaws.
產品詳情

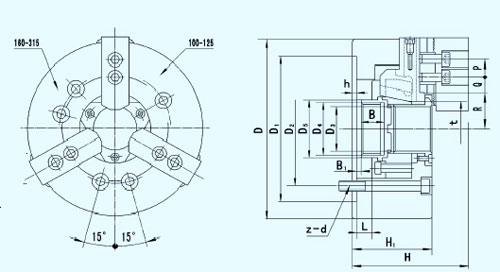

■尺寸參數 Dimension Parameters
|
規格D
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
H
|
h
|
P
|
Q
|
R
|
B
|
B1
|
z-d
|
|
max
|
min
|
max
|
min
|
max
|
min
|
|
100
|
110
|
85
|
70.6
|
26
|
M32×1.5
|
38
|
59
|
83
|
4
|
14
|
11.25
|
6.75
|
23
|
20.3
|
17.5
|
3.5
|
-6.5
|
3-M10
|
|
125
|
135
|
110
|
82.6
|
33
|
M40×1.5
|
45
|
60
|
86
|
4
|
14
|
19.75
|
7.75
|
26.5
|
23.8
|
20
|
1
|
-9
|
3-M10
|
|
160
|
169
|
140
|
104.8
|
45
|
M55×2
|
60
|
81
|
110
|
5
|
20
|
22.75
|
9.25
|
32
|
29.25
|
19
|
11
|
-1
|
6-M10
|
|
200
|
210
|
170
|
133.4
|
52
|
M60×2
|
66
|
91
|
130
|
5
|
25
|
29.75
|
14.75
|
38.7
|
35
|
20.5
|
14.5
|
-1.5
|
6-M12
|
|
250
|
254
|
220
|
171.4
|
75
|
M85×2
|
94
|
100
|
143
|
5
|
30
|
33.75
|
14.25
|
51
|
46.6
|
25
|
8.5
|
-10.5
|
6-M16
|
|
315
|
304
|
220
|
171.4
|
91
|
M100×2
|
108
|
110
|
161
|
6
|
30
|
45.75
|
15.75
|
61.3
|
56
|
28
|
8
|
-15
|
6-M16
|
|
380
|
381
|
300
|
235
|
100
|
M110×2
|
120
|
147
|
208
|
6
|
43
|
54.75
|
20.25
|
70
|
64.7
|
35
|
23
|
0
|
6-M20
|

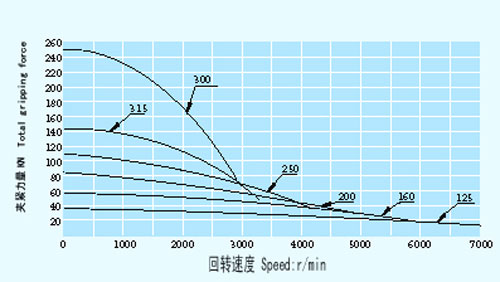

■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
推薦油缸
Rec.
cylinder
|
凈重Kg
Net WT
|
|
100
|
10
|
5.4
|
14
|
28.5
|
8000
|
7-110
|
20-110
|
P25 105
|
4
|
|
125
|
10
|
5.4
|
17.5
|
36
|
7000
|
12-135
|
25-135
|
P25 105
|
6.7
|
|
160
|
12
|
5.5
|
22
|
57
|
6000
|
16-169
|
30-169
|
P25 125
|
11.9
|
|
200
|
16
|
7.4
|
34.8
|
86
|
5000
|
13-210
|
36-210
|
P25 155
|
22.3
|
|
250
|
19
|
8.8
|
43
|
111
|
4200
|
31-254
|
45-254
|
P25 180
|
34.5
|
|
315
|
23
|
10.6
|
55
|
144
|
3300
|
34-304
|
50-304
|
P25 205
|
61
|
|
380
|
23
|
10.6
|
98
|
249
|
2800
|
50-381
|
60-381
|
P25 250
|
120
|
|
