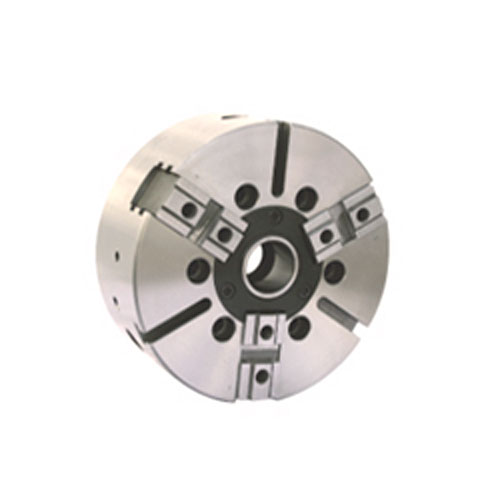

產品：K42
產品特性:
■特點：
☆短圓柱連接形式。
☆改變杠桿比可獲得大夾緊力，卡爪行程大。
☆適用于盤類、棒類工件。
☆卡爪為十字鍵型連接。
■Specificity:
☆Short cylindrical center mounting.
☆Obtaining high gripping force and large jaw stroke by changing the lever ratio.
☆Suitable for plate ,rod components.
☆The jaws are connected by cross tenon.
產品詳情

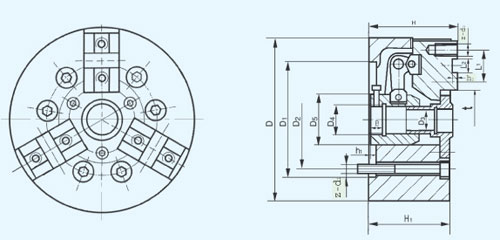

■尺寸參數(shù) Dimension Parameters
|
規(guī)格D
Size
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
H
|
h1
|
h2
|
B
|
z-d1
|
z-d2
|
L1
|
L2
|
|
200
|
140
|
120
|
32
|
M36×2
|
62
|
100
|
107
|
3
|
7
|
18
|
6-M12
|
6-M12
|
38
|
16
|
|
250
|
140
|
120
|
35
|
M45×2
|
62
|
120
|
128
|
6
|
9
|
26
|
6-M12
|
6-M16
|
48
|
20
|
|
300
|
185
|
160
|
45
|
M56×3
|
85
|
120
|
128
|
9
|
11
|
25
|
6-M16
|
6-M16
|
48
|
20
|
|
370
|
230
|
250
|
52
|
M64×3
|
105
|
138
|
146
|
2.5
|
9
|
25
|
6-M16
|
6-M16
|
48
|
20
|
產品備注
■性能參數(shù) Characteristic Parameters
|
規(guī)格D
Size
|
爪行程（直徑）
Jaw stroke(Dia.)
|
楔心套行程Lmax
Axial wedge stroke
|
許用推拉力kN
Max. draw pull
|
極限轉速r/min
Max. speed
|
最大夾緊力kN
Max. gripping force
|
配套油缸
Rec. cylinder
|
|
200
|
20
|
25
|
28
|
2000
|
50
|
P23125
|
|
250
|
20
|
25
|
35
|
1600
|
60
|
P23125
|
|
300
|
20
|
25
|
40
|
1300
|
70
|
P23160
|
|
370
|
20
|
30
|
48
|
1000
|
85
|
P23160
|
|
